Pressing

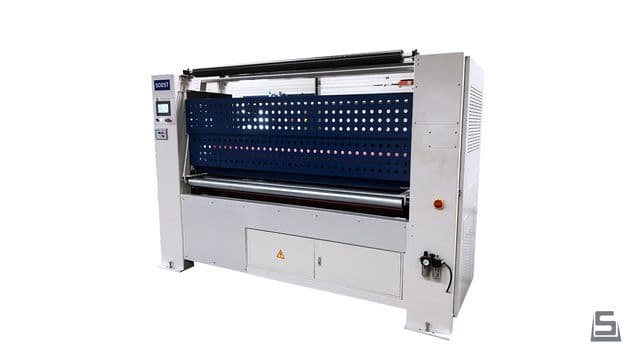

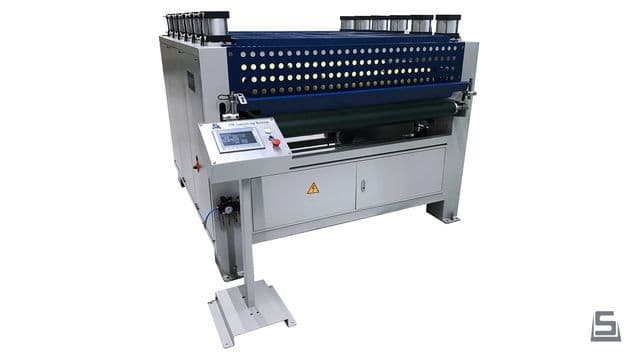

Roller press - CAL
For high-quality industrial material bonding

Roller presses are mainly used in combination with PUR hot melt roller coaters. The choice between a single or multiple roller press, depends on factors like the type of adhesive, the product material and the production speed. Also, depending on the product, either steel or rubber rollers can be used.
Single roller presses are mostly used for sheet materials, like HPL, aluminium, PVC, et cetera.
Multiple roller presses are used for engineered flooring and other stiff materials which need a longer pressing time.
Specifications
- Roller width
- 400 – 1.600mm
- Maximum work piece width
- 350 – 1.550mm
- Maximum work piece thickness
- 100mm
- Working level from floor
- 1.020mm
- Diameter pressing rollers
- Ø 190mm
- Amount of upper pressing rollers
- 6
- Hardness rubber upper pressing rollers
- 90ºShore
- Diameter cylinders
- Ø 120mm
- Pressure power rollers
- 1.350 kg perroller
- Transport belt speed
- 10 - 30m/min
- Power 1st driven upper pressing roller
- 0,37kW
- Power conveyor belt
- 2,2 - 3kW
